Railroad Operations Procedures

Index:

Set Up and Close down Routines
Whistle signals
Radio Procedures
Railroad policies
Spiels to Clients
Railroad Operational Jobs

Set up and close down routines

Several days in advance
– pre-select the RMD, ideally the previous Sunday
– RMD for that day ensures sufficient crew is coming; the blue box with cash is coming; high octane gas for the loco is available.
On the day
– RMD should be onsite by 11:30; Volunteers are to arrive by 12:00 at the latest.
– RMD will assign staff to assist in completing the Operational Day opening tasks as needed (see tasks below)
– Before operations begin the RMD will call for a short informal safety/operational meeting that they will lead with all members who are working that day. Attendance is mandatory. (5 minutes)
– The RMD will assign tasks and confirm completion on the two-sided 8.5×11″ laminated checklist
– This meeting will set the tone for the day as well as reinforce safety protocols.
– The RMD will assign who operates which position at this time.
– Any issues or suggestions can be aired.

Up to index

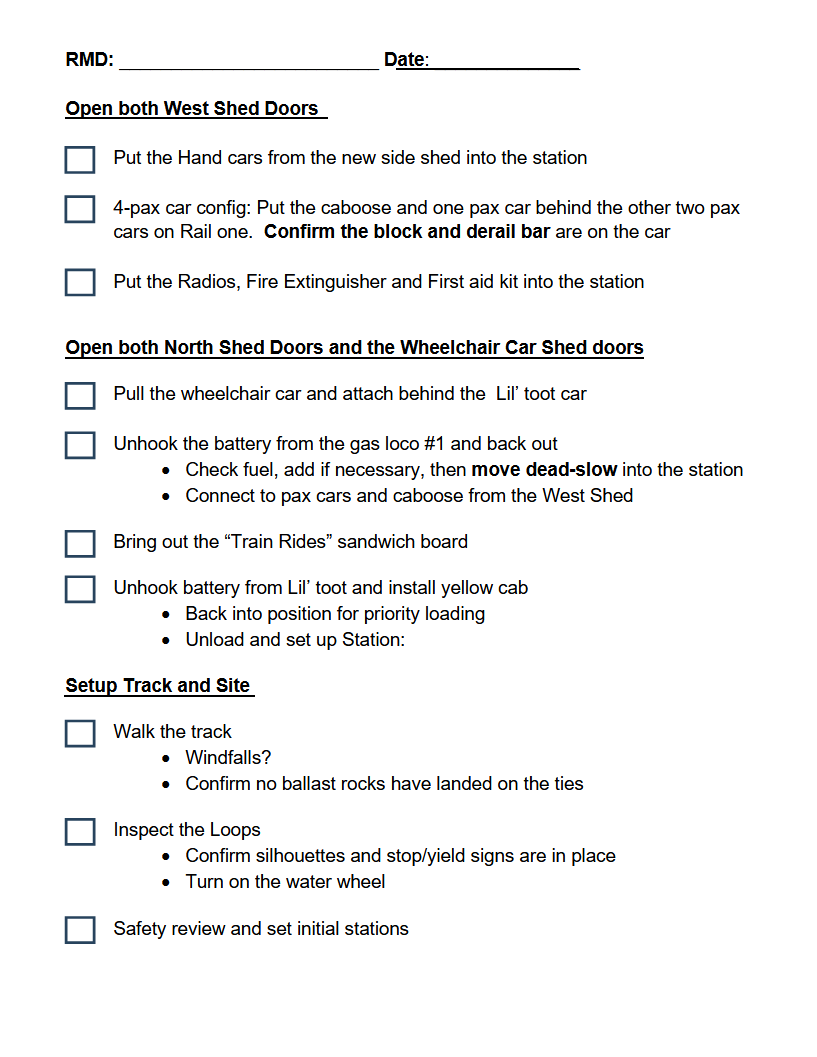

Setup routine

as of June 20.
Edits welcome from crew as we test the process.

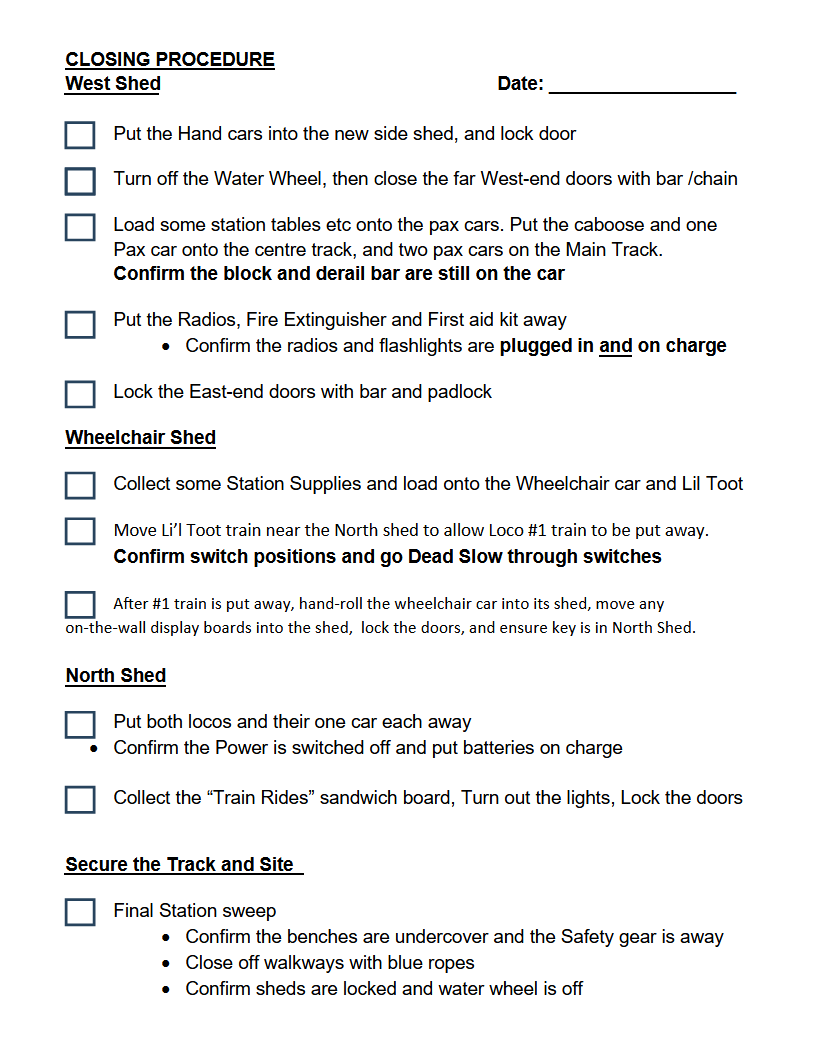

Closedown routine

as of June 20.
Edits welcome from crew as we test the process

End-of-day routine: At the end of the operational day the RMD will
– Call for a short meeting to discuss any issues or suggestions.
– Designate staff to help close up operations and secure the area.
– Ensure the loco chargers are properly charging and the gas loco has been refuelled.
– Provide a summary report either by email or verbally to the Communications Manager
–  Complete Accident/Incident reports when needed. (view pdf version);
– Ensure the crew has selected the following week’s RMD.

Up to index

Radio Procedures

We currently own two radios
– The radios will be carried by the RMD and the Conductor on the gas loco.
– Radio conversations should be as discreet as possible in front of passengers.
Code Alfa: If the Loco#1 engine derails the Conductor will call the RMD and state “Code Alfa” and location
Code Delta: If one of the passenger cars derails the Conductor will call the RMD and state “Code Delta” and location.
Code Echo: If an emergency occurs the Conductor will call the RMD and state “Code Echo” and location.
– These codes will help the RMD decide on response numbers required with the minimum amount of chatter

Up to index

Whistle Signals

Mouth Whistles in the station
– Station Master initiates all communication except emergency calls, Engineers only respond
Two Long Whistles from Station Master (all clear); • Release brakes and proceed
Two Sharp Whistles from Train (a reply); Brakes off and proceeding Forward (out of station)
Three Sharp Whistles from Train (a reply); Brakes off and proceeding in Reverse (out of station)

Whistles outside of Station:
Two Sharp Whistles from Train (a warning); Brakes off and proceeding Forward
– Three Sharp Whistles from Train (a warning); • Brakes off and proceeding in Reverse
Five Sharp Whistles repeated (SOS); • Train requires immediate assistance; Only to be used in a health related emergency

Air Horn protocol

“~~~” means long; “o” means short; either with a police-whistle; horn or toy steam whistle

~~~ Signal to stop (e.g.; conductor tells engineer to stop when backing; engineer replies with same single whistle ~~~ )
o o Conductor has loaded cars, given briefing and advises it’s safe to go;
o o Engineer is about to release brake and proceed
o o o Engineer is about to back up (sounded by either or both of Statiomaster and Engineer)
~~~ ~~~ o ~~~ level crossing – or any interest point (trestle, tunnel,….)
o o o o o emergency STOP!!!

loco bell – ring often for effect – or to draw attention to any other whistle

Up to index

Railroad Policies

Gas Loco #1 Procedure:
– A Staff Conductor must be onboard every passenger run.
– The conductor will sit right behind the Engineer facing backwards.
– The Conductor is responsible for passenger control & passenger safety
– If the conductor blows one long whistle while the train is moving the engineer must stop immediately.

Station Loading Procedure:
– The Station Master will blow the whistle 2 times when they determine the train is loaded.
– The Conductor will check the train is ready to go, then blow the whistle 2 times.
– The engineer will respond with two air horn whistles and proceed forward

Resolving Derail Procedures:
– Only the RMD will attend to the derails with those they delegate if any. This should be done as discretely and quietly as possible.
– The RMD is in charge of derails with help from the engineer.
– Customers who derail should be encouraged to safely stand by, rather than have them wander off.
– If the ride can continue back to the station loaded it should do so. (Having an empty train return and people walking in sends a poor message.)

Train Coupling:
– Pins are to remain in the coupling receiver
– Connector bars are to remain attached to the rear of a car
– Spare pins and connectors are stored in the battery compartment of the gas loco

Up to Index

Certification: At present, we are developing certification standards and processes for qualifying Train Engineers. For the other railroad jobs, on-job-training is adequate and the RMD will assign people considered qualified.

Railroad Style – encourage lots of “show” – bells and whistles etc – take photos; email to webmaster

Ride Pricing – Rides cost $2.00; Three single-punched tickets are valid for a free ride; Needed caregivers and their rider travel on one ticket. “Needed” can be declared by any child or parent/guardian unsure their child of any age will be ok alone; or a railway team member who wants the parent/guardian along for safety

Free List
– We’re not a business – our policy is to give free rides to deserving people. But…
-It’s important we be consistent with who get free rides to as not to antagonize the people who pay, often more than they can afford
– riders going free could be given 3-punched tickets to hand the conductor rather than announce verbally that the person doesn’t need a ticket.
– the family-friends-vendors free list is suspended when there are large lineups to ride the train
– Some free list situations:
– – sponsors and their families who have donated time or money to the railroad and stop by to see what it’s all about
– – family members and close friends of active PRFHS volunteers ride free a reasonable number of rides in a day
– – some special needs people who have been identified by regular train crew members are given some free rides, particularly when traffic is low
– – vendors at the market and their children are given a reasonable number of free rides in a day

Face Forward

We recommend all riders face forward for the ride because:
– some people become disoriented when riding backwards.
– train capacity is reduced when people sit both ways.

Some exceptions to must-face-forward are:
– when a young child is in the caboose, then a parent/guardian facing him/her can be allowed. The Conductor will decide.
– Some special needs persons need their caregiver riding backwards.

Up to index

Wet Weather Contingency

Bring extra towels to dry the seats; use the material we have now
Could set up a tent over the track if rain is forecast
Bring extra tarps to keep unused cars dry

Garden and gutter/rain barrel/water tower Policy

After a trial year in 2024, we have decided to put the garden into a fallow mode using only water from the rain barrel to water the garden, which could have a cover crop or whatever.

 Wheelchair car

– The wheelchair car is to be positioned at the permanent ramp, loaded there, and brought to the station when a wheelchair rider is ready. If that e-loco is in service pulling passenger cars, the RMD will direct the connecting/loading process. An option i to push the loaded wheelchaircar car onto the mainline behind a train
Up to top



Up to Index

Spiels for the clients

Stationmaster Spiel for Train

Suggested (for new stationmasters. Wording can be adapted to your style)

– Thank you for coming. For a safe and enjoyable trip, please:
– Face forward unless especially authorized.
– Keep your feet inside your car.
– Do not lean out, attempt to grab anything, or change positions; or you may disrupt the balance of the train.
– When the ride is over, please wait for the train to come to a complete stop and do not get off until the conductor or engineer blows his whistle and says it is safe to do so.
….. after the trip is over, direct them to the exit…
– Thank you for riding with us!”

Stationmaster spiel for hand car clients

(Wording can be adapted to your style)

“- Thank you for coming — we hope you enjoy the ride.
– the hand car is tippy, so to get on the hand car, don’t stand on it. Put one foot on either side and sit down.
– short legs can be bent at the knees with the feet positioned on the hand car. For longer legs, put your legs straight, with feet out in front of the car.
– wiggle forward or backward to be sure your weight is centered, or you could derail
– always hold on tight to both handles. The handles don’t coast like a bicycle, and if you let go the handles, they can get away on you and knock your teeth out.
– go slowly while in the station, then full speed after you get past the crossing
– keep a space between you and the other hand car. No bumping please.
– if the hand car derails, get off and signal a crewmember for help. Or, try to lift and center it on the track yourself.
….. after the trip is over, direct them to the exit...
– Thank you for riding with us!”

Ticket Seller Spiel
( Wording can be adapted to your style)

“- Welcome to the Paradise Valley Railroad!
– Thank you for coming — we hope you enjoy the ride.
– Rides cost $2 per person, for either the train or hand cars.
…if young children or special needs person are there…
– For the train, for children up to three years old, we require a caregiver along on the train, and the child with caregiver ride on one $2 fare
– For children older than three, or special needs people, if we, or the child or caregiver feels they need someone older along for confidence or safety, the two ride on one $2 fare.
– for the hand car, children must be taller than __ inches and five years old or more.
– For safety, it is important that you follow the safe riding rules posted on the signs. Please have a look at them as you wait.
– Take your ticket through the line to the conductor, who will punch the ticket.
– Please note that we have a free bonus ride program. Three single-punched tickets are valid for a free ride, so be sure to save them and bring them back for free rides; not only today but all season.
– and…. be sure to follow train crew instructions at all times. “

Up to top

Railroad Operational Jobs

(A Full Crew is eleven: the Railroad Manager of the Day (RMD,) a Stationmaster and Assistant/Handcar loader, Loco#1 Engineer, Loco#1 Onboard Conductor, Handicap car engineer, Handicap car Conductor, a Main Switch manager, a Crossings Manager, and two ticket sellers. For a Reduced Operation, jobs can be combined.

All Railroad personnel: Tasks: Provide a fun and safe experience for the clients; correct any bad or unsafe behavior; ensure zero tolerance for sexual harassment; be politically correct on all human rights areas: race, religion, sexual orientation, age, appearance, weight, colour, politics, etc; implement all the railroad Policies, assist with derails if needed; have fun.

Railroad Manager of the Day RMD)
Role: fully in charge of the day’s operation
Current RMDs: Dan Parsons, Russ Evans, Rob Clark, Bob Johnson, Karl Schoen, Dave Florence
Tasks: During Operations: Monitor the radio, manage the operation
Before and after operations: As per the “Setup – Closedown” checklists above: who is doing what task, e.g.: do we blow the track first, who is doing a test run with hand car or train,  train configuration, who is covering which job, when do we start, when do we put which train away, who is in charge on a derail, what do we do if an issue arises, Complete a report to the Communications officer (verbal or email), Complete Accident/Incident reports when needed. (view pdf version here) etc. ; review the next weeks operation with next week’s RMD; report summary to the crew by email  (or have the cashbox manager do it).
Skill/Knowledge: knows all policies and functions of the railroad operation through extensive experience, and knows the team well enough to select the best member to do a specific task.

Stationmaster (and Assistant Stationmaster/Handcar loader)
Role: Manage the client lineup; load and unload train and handcar passengers, assign task-sharing with the Assistant Stationmaster
Tasks: Lineup: Assess wait times and work with the RMD regarding which train assets to use; Departure: decide the departure sequence of train and handcars; open the entrance rope, punch new tickets, collect punched tickets used for the ride-bonus (destroy at day’s end); Decide where to position clients; board the people, close the rope, do the safety spiel; call “All Aboard” when the train is about to go. Arrival: Direct clients to the exit. Repeat.
Skill/Knowledge: Manage all the station functions effectively

Train Engineer(s)   (need one for the main gas-engine-driven train (Loco#1) and one for the e-loco train periodically)
Role: Drive the train safely around the track
Tasks: drive the train safely; listen to advice from the Conductor, help load/unload the train; use the whistle/horn signals correctly; maintain spacing between train and handcars; rely on the on-board Conductor to monitor passenger behaviour; Stop at the stop sign unless waved through by a Railroad Crossings Manager
Skill/Knowledge: knows how to: Operate the locomotive, especially stopping safely; Correct derails; Judge speed, especially downhill;

On-board Conductors (Rear-facing on Loco#1; at the back of the wheelchair car)
Role: Implement safety protocols on board
Tasks: Monitor passenger behaviour; Operate the radio/whistle as needed; speak to the engineer and alert others by voice or whistle if problems occur;
Skill/Knowledge: preferably a crew member or a well-briefed person.

Main Switch Manager
Role: Switch from main line to handcar line as needed; fix handcar derails
Tasks: Operate the switch that puts trains and handcars onto the correct track into the station; fix handcar derails in the loop; send slow or tired hand-car clients on the by-pass to the station; monitor handcar behaviour; do not tolerate bumping, single-handling, or other irresponsible action; ( if no Crossings manager in place: monitor the X-crossing traffic and help ensure safe operations at the X-crossings; )
Skill/Knowledge: know how to fix derails, understand correct train-handcar spacing

Railroad Crossing Manager (if available; may be required for a higher priority task, such as providing the wheelchair car train)
Role: Add a layer of safety at the crossings
Tasks: help ensure no accidents at the crossings where Stop and Yield signs are in place, and reinforce handcar operator rules
– Always ensure the handcars stop, look and listen at crossing #1
– Position yourself to physically block handcars when a train is approaching
– wave the train through the stop sign if safe to do so
– – with the Main Switch Manager, monitor Rail Crossing #2 and keep trains and handcars safe there (crossing #2 has a Yield sign)
Skill/Knowledge: Be able to judge speed and capability of handcars and trains; have confidence to enforce the rules; provide clear direction to handcars and the train engineer

Ticket Sellers (normally two)
Role: Be the”Front of House” face of the Railroad;
Tasks: Welcome clients, Explain the process; Implement the height/age policy; Sell the ride and raffle tickets; stamp arms with the train stamp if requested; mind the cashbox, store large bags for clients, complete the daily cash log; roll toonies/loonies at day’s end; deliver the cashbox to the Railroad Cashbox Manager.
Skill/Knowledge: people friendly; skilled in handling cash and making change;

Railroad Cashbox Manager (The PRFHS Treasurer or someone he selects)
Role: Manage the cashbox, make bank deposits, and report results to the treasurer and members through the Communications Manager.
Tasks: Bring the cashbox, take it home , re-count the days sales/donations, retain the  $250 float; do the Scotia Bank deposits; ensure the cashbox is delivered to the ticket sellers next week
Skill/Knowledge: skilled in handling cash and banking

Chief Engineer (currently Dan Parsons)
Role: the final authority on railroad procedures and technical matters
Tasks: Review all railroad procedures and modifications
Skill/Knowledge: An experienced operator, maintainer and builder of 7.5″ gauge model railroads

Communications Manager (Currently Dave Florence)

Role: Keep the crew and public informed
Tasks: weekly email to the crew; ensure the web page is kept current;
Skill/Knowledge: Computer applications; ideally a website maintainer

Up to Index
